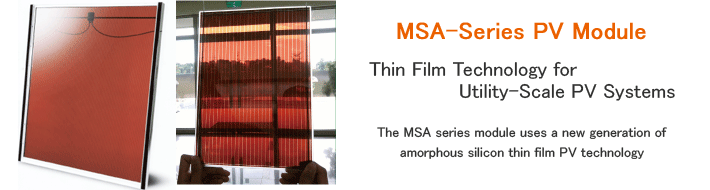

Masamitsu Solar Panel
| Electrical Data | SA-100 | SA-100H | SA-95 | SA-95H | SA-90H | SA-80H |
|---|---|---|---|---|---|---|
| Pmpp | 100W ± 5% | 95W ± 5% | 90W ± 5% | 80W ± 5% | ||
| Vmpp | 100V | 96V | 94V | 89V | ||
| Impp | 1.00A | 0.98A | 0.96A | 0.90A | ||
| Voc | 128V | 128V | 124V | 119V | ||
| Isc | 1.24A | 1.24A | 1.22A | 1.20A | ||
| Max System Voltage | 600V | 1000V | 600V | 1000V | 1000V | 1000V |
Specifications
- Certified according to IEC61646 and IEC61730 srandards (SA-100H series)
- Performance Guarantee 1:Guaranteed output of 90% for 10 years
- Performance Guarantee 2:Guaranteed output of 80% for 20 years
- Maximum Load：2400Pa static load
- *Amorphous Silicon Solar Panels
- *CIGS
