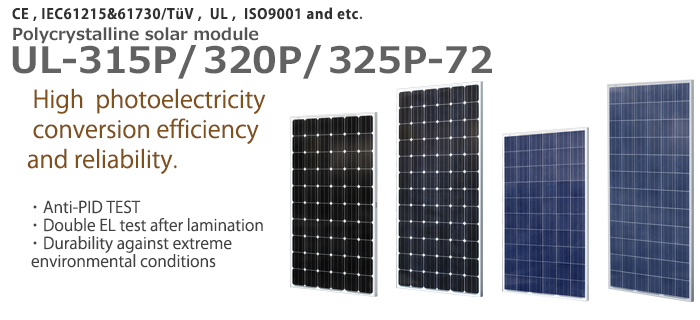

Masamitsu Polycrystalline solar module
Electrical Performance
| Model No. | UL-315P-72 | UL-320P-72 | UL-325P-72 |
|---|---|---|---|
| Power Output(Pmax) | 315 W | 320 W | 325 W |
| Module Efficiency（％） | 16.23 ％ | 16.49 ％ | 16.75 ％ |
| Optimum Operating Voltage(Vmp) | 36.8 V | 36.9 V | 37.0 V |
| Optimum Operating Current(Imp) | 8.56 A | 8.68 A | 8.79 A |
| Open Circuit Voltage (Voc) | 45.4 V | 45.8 V | 46.0 V |
| Short Circuit Current (Isc) | 8.97 A | 9.07 A | 9.16 A |
| Detail |  |
||
Operating Conditions
| Max. System Voltage | 1000V | Nominal Operating Cell Temperature | 45 ± 2 ℃ |
|---|---|---|---|
| Max. Series Fuse Rating | 15A | Temperature Coefficient of Pmax | -0.413 %/℃ |
| Operating Temperature | -40℃～＋85℃ | Temperature Coefficient of Voc | -0.330 %/℃ |
| Max. Static Load（Front e.g., Snow & wind） | 5400Pa | Temperature Coefficient of Isc | ＋0.049 %/℃ |
| Max. Static Load（Back e.g., wind） | 3800Pa | ||
| Application Class | A |
Construction Materials
| Front Cover | low-iron tempered glass /3.2mm | Dimensions（H*W*D） | 1956 * 992 * 46 mm |
|---|---|---|---|
| Cells （quantity/ material/ type/ dimension） | 72 / Poly / 156*156mm | weight | 22.5 kg |
| Encapsulant | ethylene vinylacetate (EVA) | ||
| Frame（Materia/Color） | Anodized aluminium alloy / Silver or Black | ||
| Junction Box（IP Class） | IP67 | ||
| Cable （lemgth/ cross-sectional area） | 1100mm / 4 mm² | ||
| Plug Connector | MC4 compatible |
